CL - E1 TOP ug

CL-E1 TOP devices for RAILS

Anti-noise / lubricating device for rail curves
for ALL TYPES OF RAILS.

Effective against NOISE and WEAR.
Reduction of high frequency noise up to 30 dBA.

Applies environmental friendly Composite Heavily Fluid Compound material.

System has the ability of supplying both rails with one device.

Resistant to vandalism - installed underground.

We make two types of CL-E1 TOP ug system:

Stand-alone option -> CL-E1 TOP ug Solar
AC power option -> CL-E1 TOP ug Electro

Report about the efficiency of the system:

Outstanding noise reduction on source.
Special CHFC material – Composite Heavily Fluid Compound material is capable of taking over extremely high pressure loads.

System allows applying the CHFC material on rail.
Effective protection against wear – wheel and rail (GCC, RCF and corrugation).
Stand-alone option.
User friendly handling.
Simple for assembling and maintaining.
Safe and reliable working of the system.
Optimal dosing volume of CHFC material.
Reduction of rail`s LCC (Life Cycle Cost).
Reduction of wheel`s LCC (Life Cycle Cost).
Environmentally friendly materials.
Great flexibility of the system according to user needs.
Stand-alone option.
High IRR (Internal Rate of Return).
Driving power consumption reduction up to 15%.

General technical data: The system with boreholes can be installed also in the middle of the curve. Trace of material can be visible up to 10 km from the device, depending on the configuration of track. Expansion of the material with patented and verified solution (boreholes) which considerably reduce consumption of CHFC material and increase utilization of material to app. 99.8%. Highly effective system has the ability of applying material which contains more than 40% of solid particles.		Other technical data: Volume of reservoir: V = 24 dm3 Operating voltage : U = 24 V DC Max. current: Imax = 2 A Standby current: I = 35 mA Dimensions of the aggregate (reservoir) can be adjusted according to customer needs.

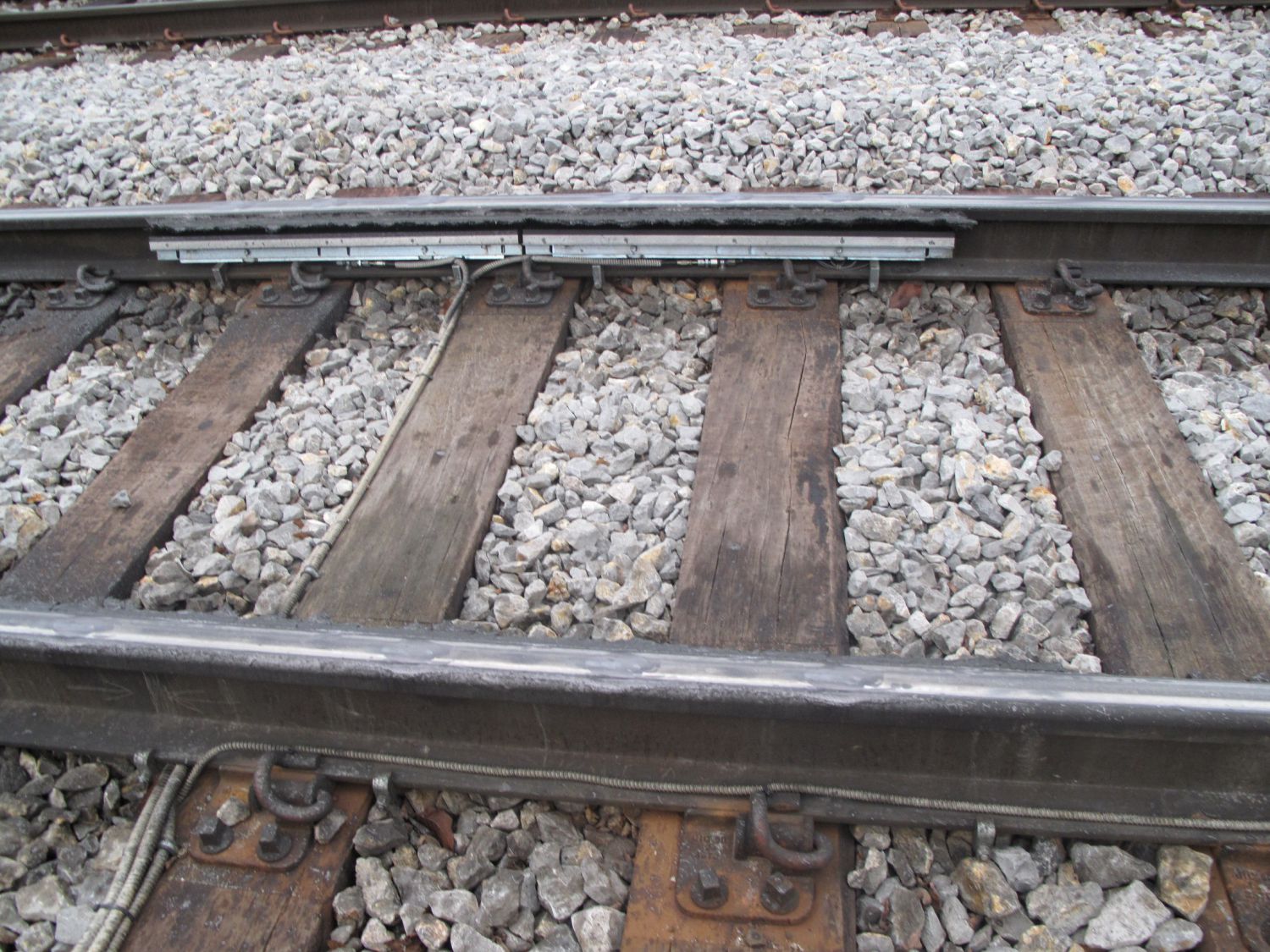

CL-E1 TOP ug - Front view		CL-E1 TOP ug - Layout

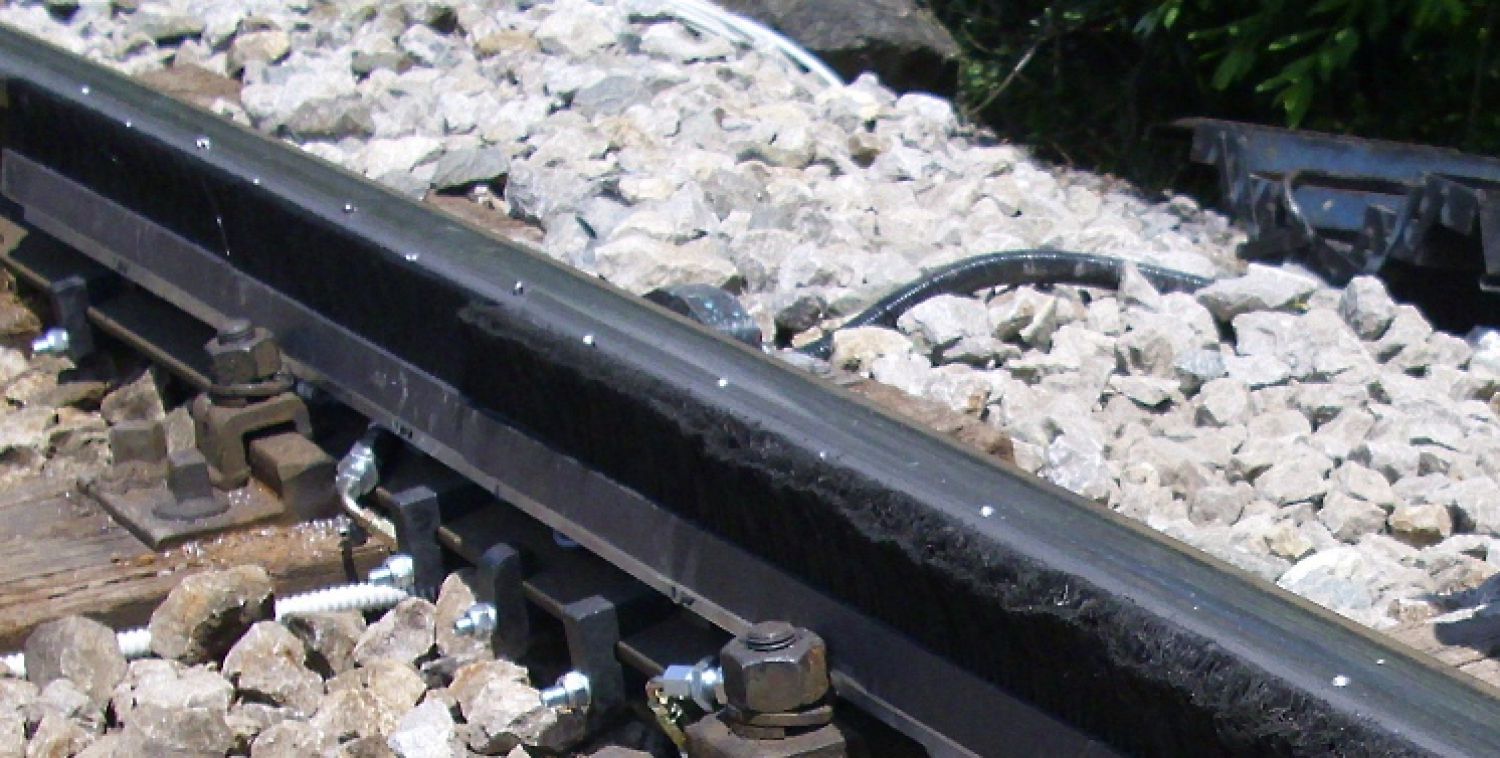

Precise position of patented boreholes on dosing field is crucial for achieving excellent results with CL-E1 ug TOP device:
